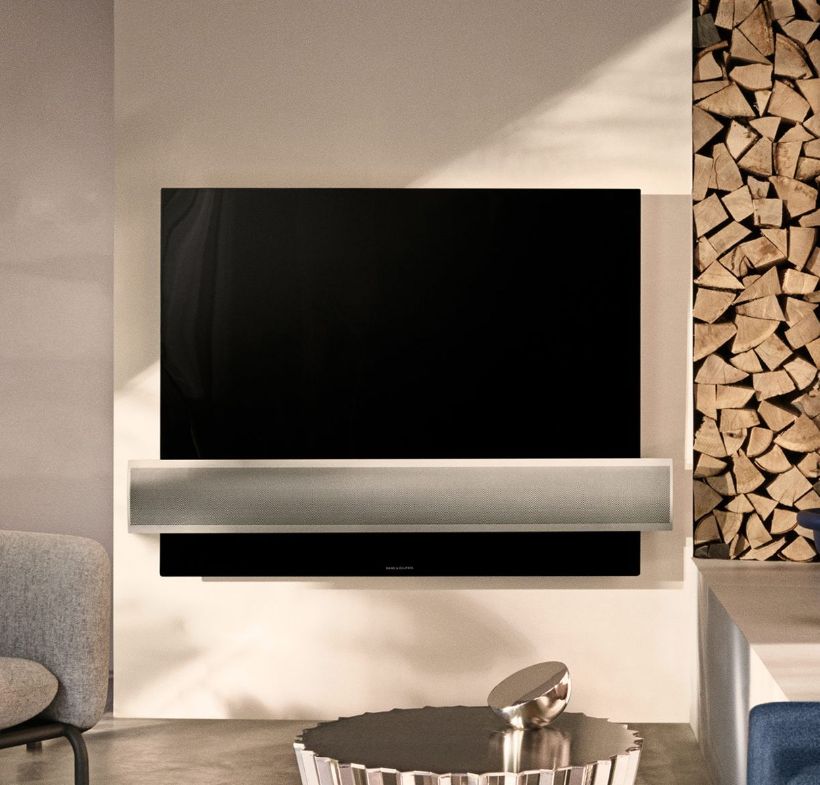

Beovision Eclipse 65 (1st generation)

Product Specification

Loudspeaker
Integrated fully active three channel stereo (centre and stereo)

Amplifier
1 x 50 watts for centre tweeter 2 x 50 watts for fullrange driver 3 x 100 watts for midrange/woofer

Speaker Configuration
1 x 1″ tweeter 2 x 2.5″ fullrange drivers 3 x 4″ midrange/woofer

Advanced Sound Features
Integrated 7.1 surround sound module Adaptive Bass Linearisation Sound modes and Speaker groups TrueImage up and downmixing Immaculate Wireless Sound integrated for a full wireless surround solution with connection of up to 8 speakers

Frequency Range
29Hz – 22,000 Hz

Sound format HDMI A-D
Dolby Digital 5.1 Dolby Digital plus 7.1 DTS HD-Master Audio 7.1 and the underlying DTS formats PCM 7.1 multichannel

Customizable Sound EQ
9 editable sound modes on Bang & Olufsen app

Speaker groups
Yes

Display Type
4K OLED Perfect black & Wide viewing angle

Display Resolution (H x V, Pixels)
3840 x 2160 Over 8M pixels

HDR
HDR 10 HDR 10 Pro HLG Dolby Vision IQ

Codecs compatibility
HEVC VP9 AV1

Gaming
< 1 ms response time Input lag 12,8 ms VRR G-sync and FreeSync™ compatible ALLM

4k and 2K HFR HGiG mode

Smart TV
webOS

Remote controls
2way Bluetooth control via Beoremote One BT

Streaming services
Apple AirPlay Bluetooth Google Cast Beolink Multiroom Spotify Connect

Integrated music services
Deezer (incl Deezer HiFi) TuneIn internet radio QPlay (China specific)

Inputs
Soundcenter: 4 x HDMI (2.0) 1 x Ethernet 10/100Mb 1 x Analogue line in (3,5 mm mini jack) 1 x Optical in

TV screen: 4 x HDMI (2.1) 3 x USB 1 x Ethernet 10/100Mb

Outputs
8x WiSA 8x Powerlink 6x PUC control via IR

Internal Connection
1 x HDMI (2.0) eARC 1 x Ethernet 10/100Mb

Peripheral Unit Control
Integrated Peripheral Unit/Set-top Box Controller controlling six units, allowing you to control set-top boxes with the Bang & Olufsen remote control

Wireless Speaker Connectivity
Standard built-in, WiSA compliant Connect up to eight BeoLab speakers wirelessly in addition to the wired speakers

Bluetooth Version
Bluetooth 4.2

Wi-Fi
Dual-Band Wi-Fi (2.4 & 5 GHz) IEEE 802.11 b/g/n/ac

Materials
Aluminium Oak wood Smoked Oak wood Walnut wood Fabric

Placement Options
Motorised floor stand +/- 90° rotation Floor stand Motorised wall bracket with remote operation (60° rotation) Manual wall bracket with right/left turn (60°rotation)

Weight
55″: 43,3 kg 65″: 52,2 kg Floor stand 25,2 kg Wall bracket: 8 kg

Dimensions (cm)
55″ floor standing: 123.5 h x 139 w x 37.2 d cm 55″ wall bracket: 99.5 h x 139 w x 12.2 d x 124.9 opening depth cm

65″ floor standing: 136 h x 161.1 w x 51.8 d cm 65″ wall bracket: 111.8 h x 161.1 w x 12.2 d x 144.1 opening depth cm

Power Consumption
Typical: 80 W (Soundcenter)

Energy Efficiency Class
65″: G 55″: G

Mains Voltage Range
100~240 Vac 50-60Hz
